Piping & Spray Module

Hygienic pipelines: DN25–DN100, welded/polished, slope >1° for complete drainage

Rotary spray balls (pharmaceutical): 360° coverage, impact force ≥3 m/s (ASME BPE SD-3 compliant)

Fixed spray heads (food): Wide-angle nozzles for large tank cleaning

Consult Now

Overview

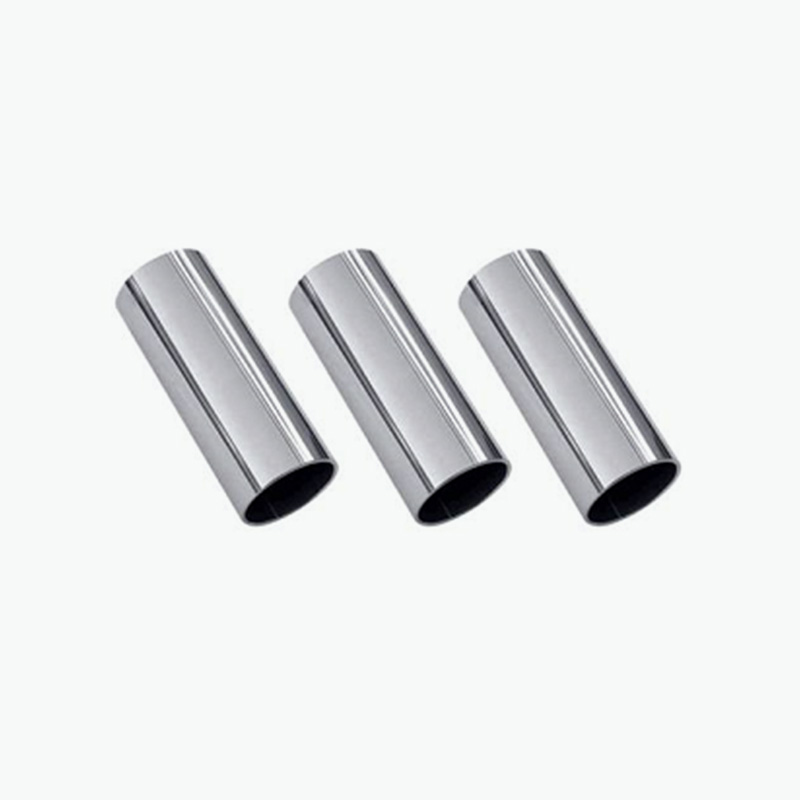

Sanitary Piping System
Pipe diameter range from DN25 to DN100. Features automatic orbital welding to ensure stagnation-free flow. Bend radius of 1.5D. EPDM + PTFE sealed clamps, compliant with EHEDG certification, guaranteeing contamination-free transfer of pharmaceutical sterile fluids and food-grade materials.

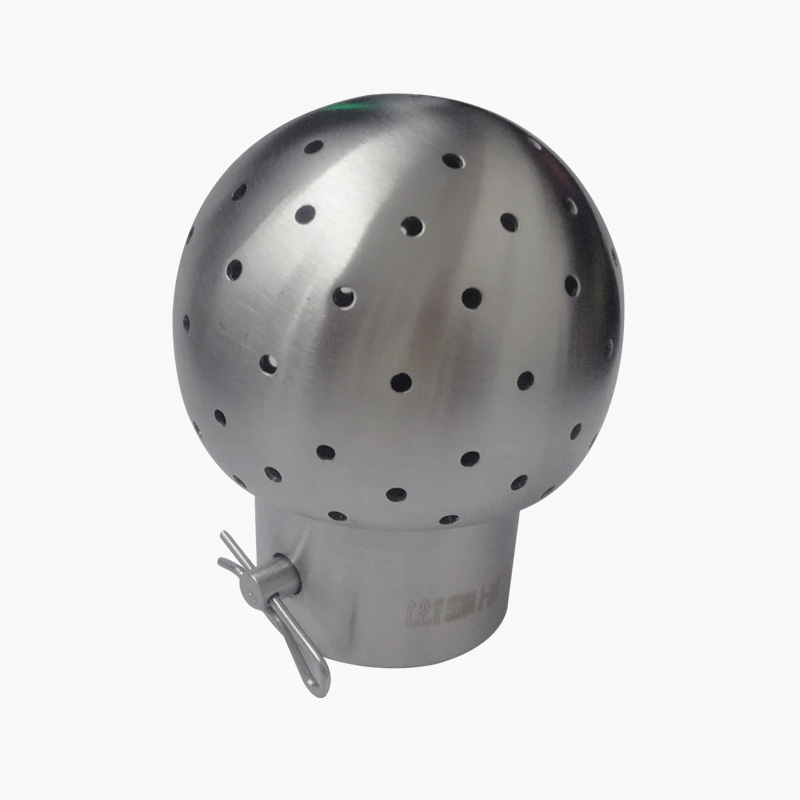

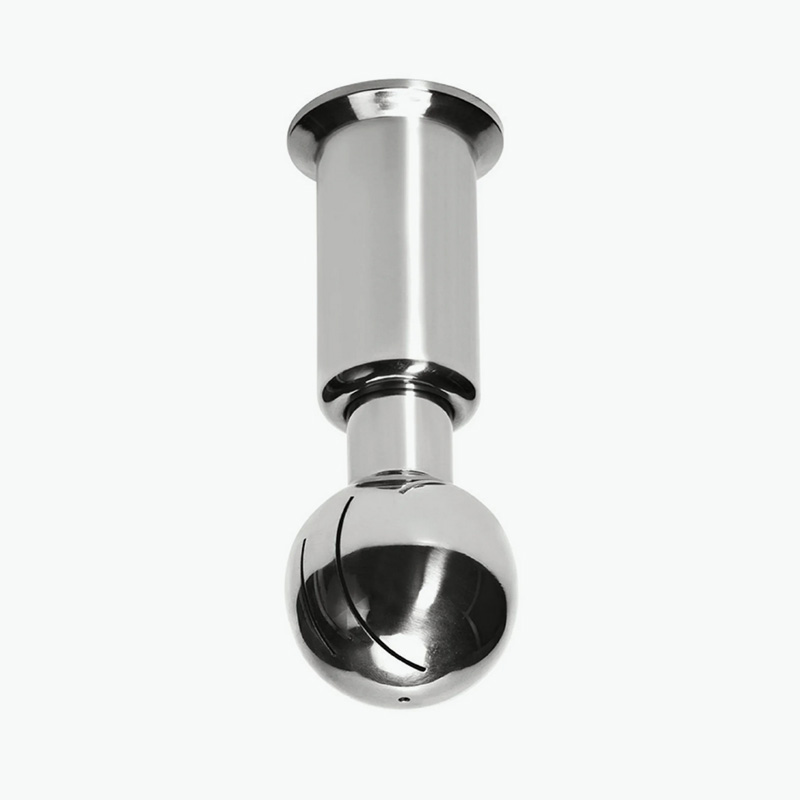

Rotary Spray Balls (Pharmaceutical Grade)
Constructed in 316L stainless steel. Provides 360° full coverage with spray impact velocity ≥3 m/s. Supports bidirectional rotation. Compatible with complex vessel cleaning in lyophilizers and bioreactors.

Fixed Spray Heads (Food Grade)
Wide-angle fan nozzles with adjustable flow rate. Manufactured from Hastelloy? alloy. Suitable for high-pressure washing applications. Designed for rapid cleaning of large storage tanks and transfer pipelines.
